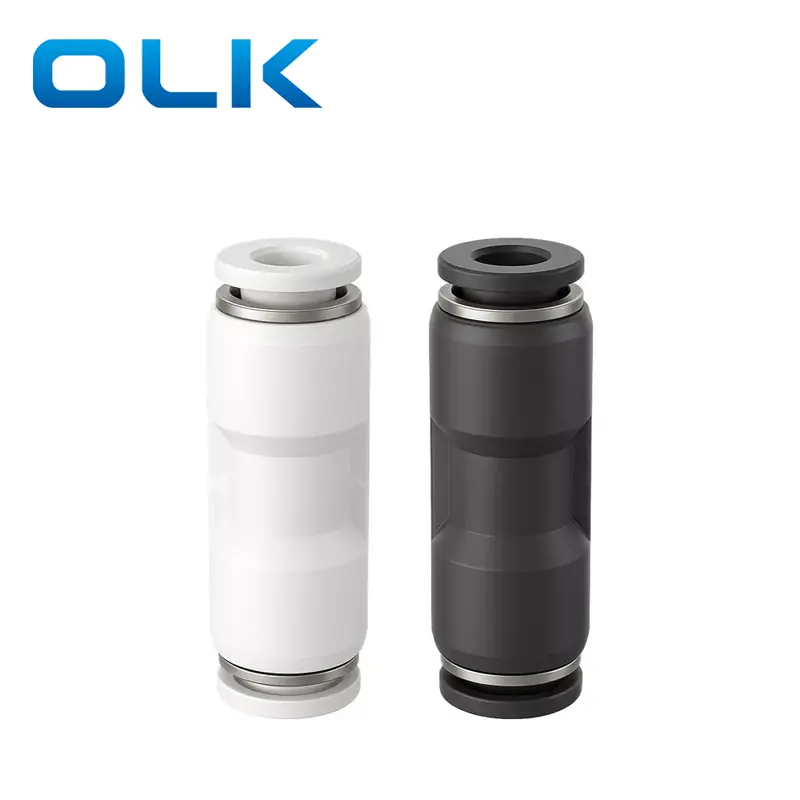

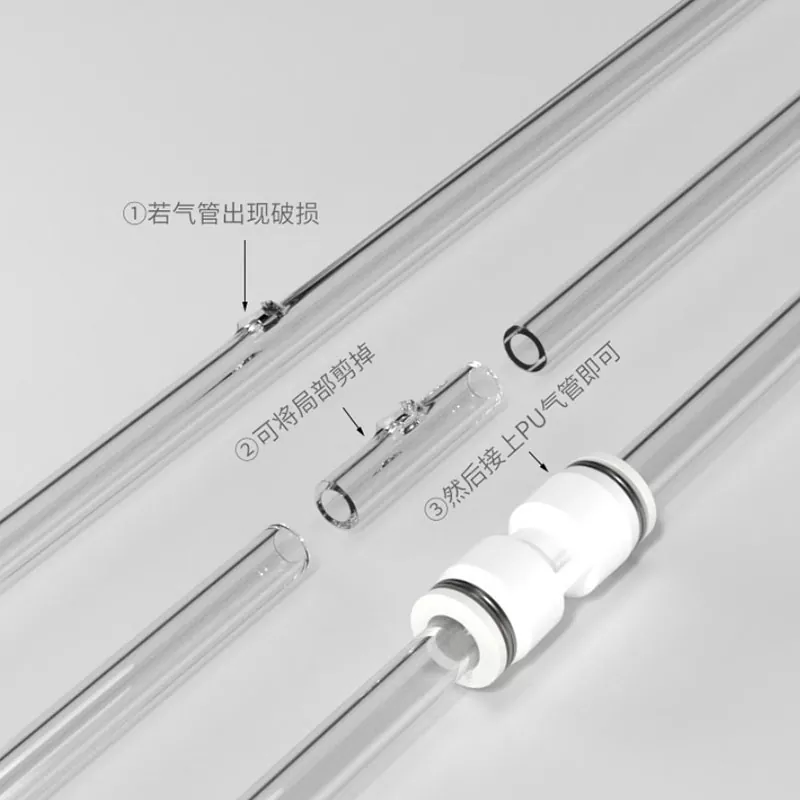

PG Reducer Union Straight Push In Tiub Fitting

Kod pesanan

PG

8

--

01

Model

Saiz tiub (metrik)

Saiz tiub (metrik)

Pemasangan siri PG

4:4mm

4:4mm

6:6mm

6:6mm

8:8mm

8:8mm

10:10mm

10:10mm

12:12mm

12:12mm

14:14mm

14:14mm

16:16mm

16:16mm

Cecair

Udara/air(bersyarat)/vakum

Tekanan operasi

0-1.0Mpa

Tekanan vakum

-100Kpa(10 Torr)

Suhu operasi

-10-60 ℃

bahan

NYLON(PA), Poliuretana(PU)

Pemasangan Tiub Inci

Pemasangan MetricTube

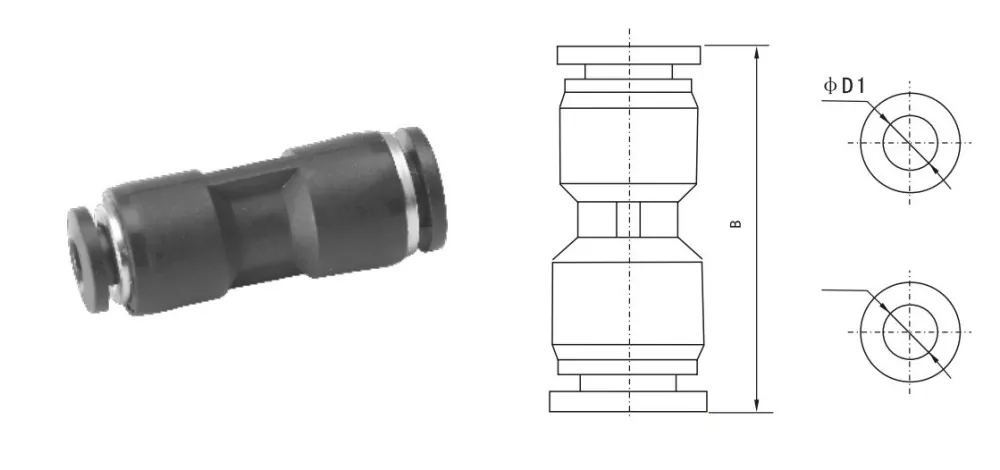

φD1

φD2

B

PG1/4-5-32

PG6-4

6

4

35

PG5/16-1/4

PG8-6

8

6

35.5

PG3/8-5/16

PG10-8

10

8

38

PG1/2-13/8

PG12-10

12

10

47

PG16-12

12

12

47.5

PG2/6-5/32

PG8-4

8

4

47.5

PG3/8-1/4

PG8-4

10

6

67

PG1/2-5/16

PG12-8

12

8

67

Rujukan Penukaran Saiz Benang Imperial Biasa

Saiz Imperial

lebih kurang Metrik (mm)

Formula Penukaran

1/8

3.2mm

1÷8×25.4=3.175

32/5

3.97mm

5÷32×25.4=3.97

1/4

6.35mm

1÷4×25.4=6.35

16/5

7.94mm

5÷16×25.4=7.94

3/8

9.53mm

3÷8×25.4=9.53

1/2

12.7mm

1÷2×25.4=12.7
