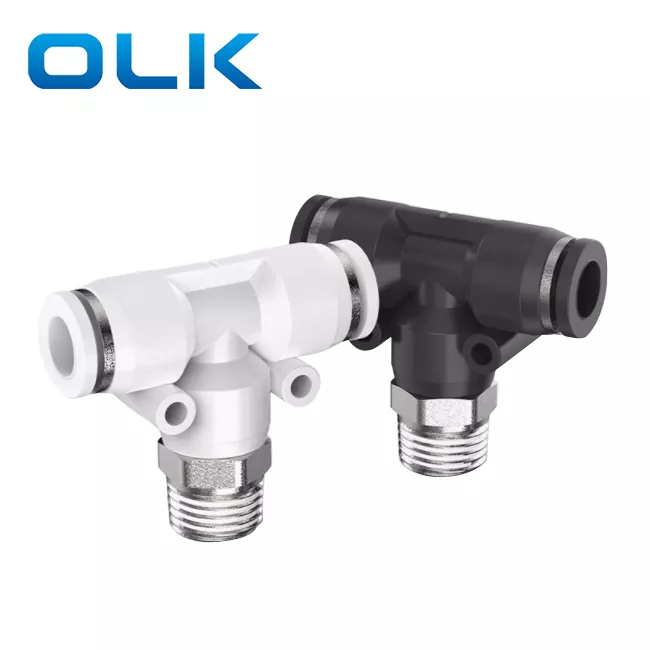

PB Branch Tee Push In Tiub Fitting

Kod pesanan

PB

8

--

01

Model

Saiz tiub (metrik)

Jenis benang (benang tiub lurus 55°)

Pemasangan siri PB

4:4mm

01:G1/8

6:6mm

02:G1/4

8:8mm

03:G3/8

10:10mm

04:G1/2

12:12mm

14:14mm

16:16mm

Cecair

Udara/air(bersyarat)/vakum

Tekanan operasi

0-1.0Mpa

Tekanan vakum

-100Kpa(10 Torr)

Suhu operasi

-10-60 ℃

bahan

NYLON(PA), Poliuretana(PU)

Pemasangan Tiub Inci

Pemasangan Tiub Metri

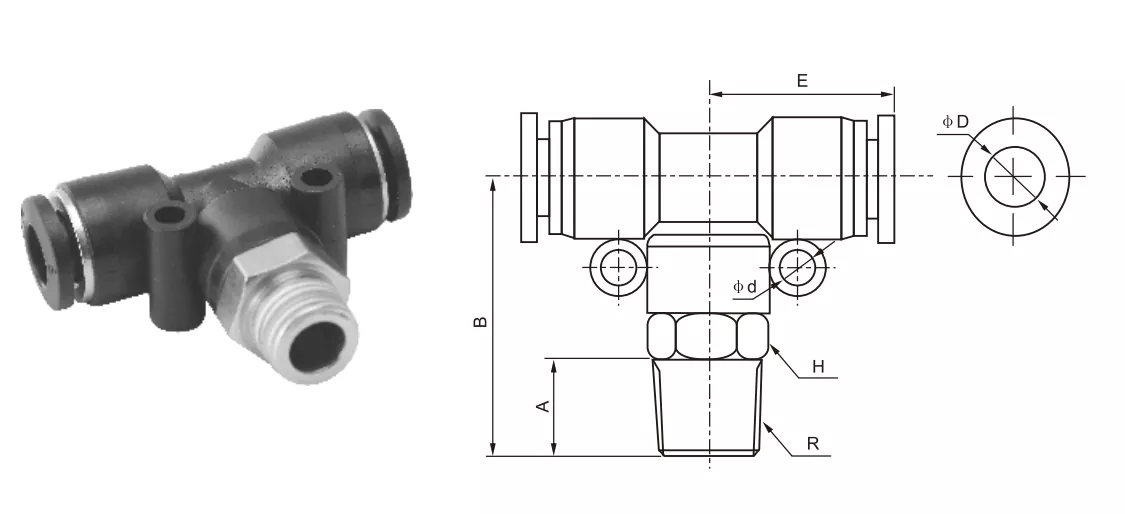

φD

R

A

B

E

H2

φd

PB5/32-M5

PB4-M5

4

M5

4.5

25.4

18.6

10

/

PB5/32-01

PB4-01

4

R1/8

7

25.4

18.6

10

/

PB5/32-02

PB4-02

4

R1/4

9

27.8

18.6

14

/

PB1/4-M5

PB6-M5

6

M5

4.5

26.8

20.8

12

3.5

PB1/4-01

PB6-01

6

R1/8

6.5

37.6

20.8

12

3.5

PB1/4-02

PB6-02

6

R1/4

9

30

20.8

14

3.5

PB1/4-03

PB6-03

6

R3/8

10

30.6

20.8

17

3.5

PB1/4-04

PB6-04

6

R1/2

10

32.5

20.8

21

3.5

PB5/16-01

PB8-01

8

R1/8

8

31.5

22.9

14

4.5

PB5/16-02

PB8-02

8

R1/4

10

33

22.9

14

4.5

PB5/16-03

PB8-03

8

R3/8

10

33.6

22.9

17

4.5

PB5/16-04

PB8-04

8

R1/2

11

35

22.9

21

4.5

PB3/8-01

PB10-01

10

R1/8

8

37

27.8

17

4

PB3/8-02

PB10-02

10

R1/4

10

38

27.8

17

4

PB3/8-03

PB10-03

10

R3/8

10

38

27.8

17

4.5

PB3/8-04

PB10-04

10

R1/2

11

39

27.8

21

4.5

PB1/2-01

PB12-01

12

R1/8

8

37.5

29.5

19

5

PB1/2-02

PB12-02

12

R1/4

10

40

29.5

19

5

PB1/2-03

PB12-03

12

R3/8

10

40

29.5

19

5

PB1/2-04

PB12-04

12

R1/2

11

41

29.5

21

5

PB14-03

16

R3/8

11

46.3

34.5

24

4

PB14-04

16

R1/2

12

47.3

34.5

27

4

Nama/jenis

Penerangan Struktur Antaramuka

Run Tee (PD)

Aliran udara utama adalah lurus, dan cawangan dibawa keluar secara menegak

Cawangan Tee(PB)

Dua antara muka disambungkan pada sudut tepat, satu pada cabang "T"

Tee Sama

Tiga port dengan saiz yang sama
