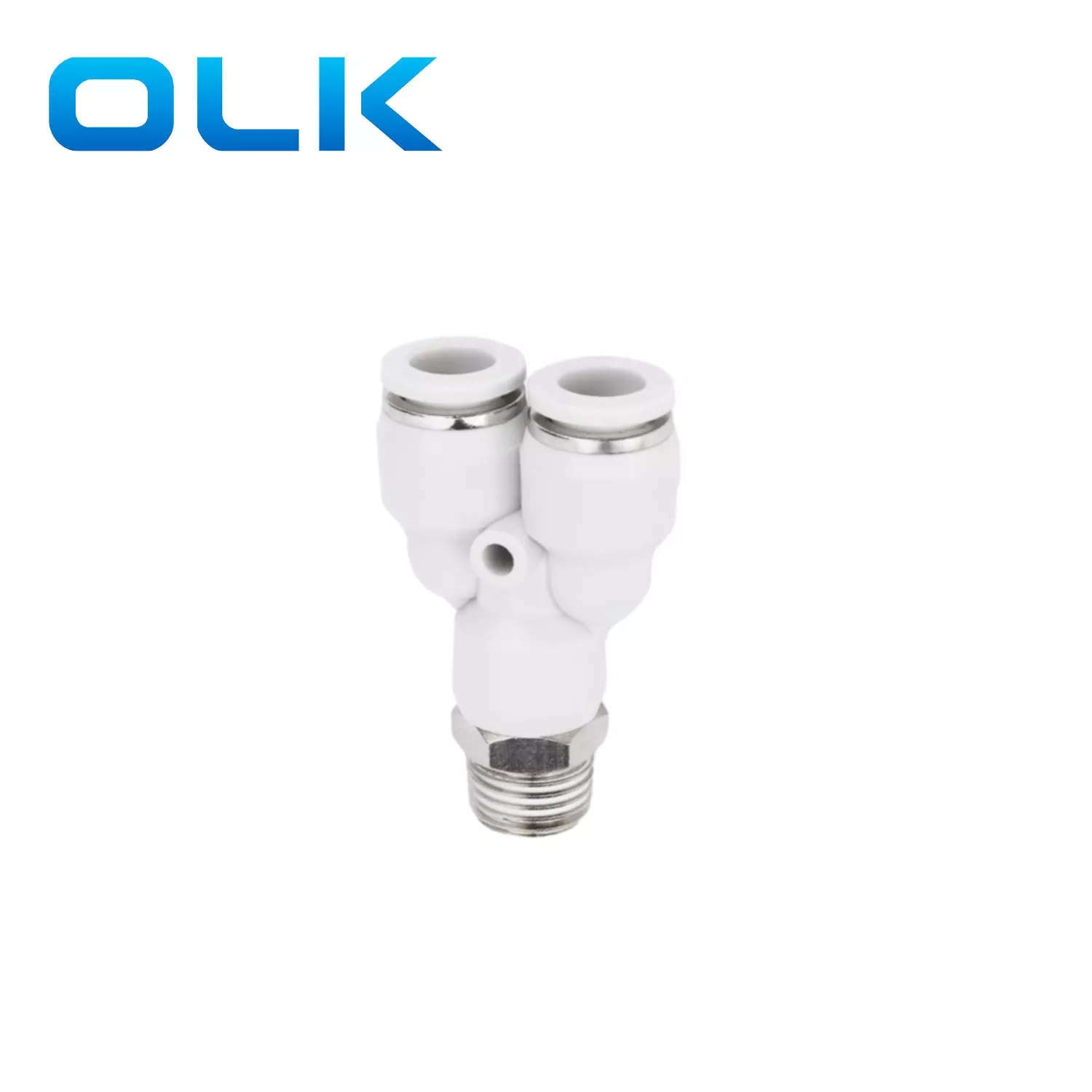

PX Y type Push-in Tube Fitting is push-to-connect design.easy installation.The overall appearance is Y-shaped, with a smoother flow direction that is more suitable for air flow. And the main air path way is directly connected. Commonly used for gas separation or auxiliary pipelines in pneumatic systems.
PX made from copper and not easy corrosion.
|
Ordering code |
|||
|
PX |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
PX series fitting |
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
PX Y type Push-in Tube Fitting
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|

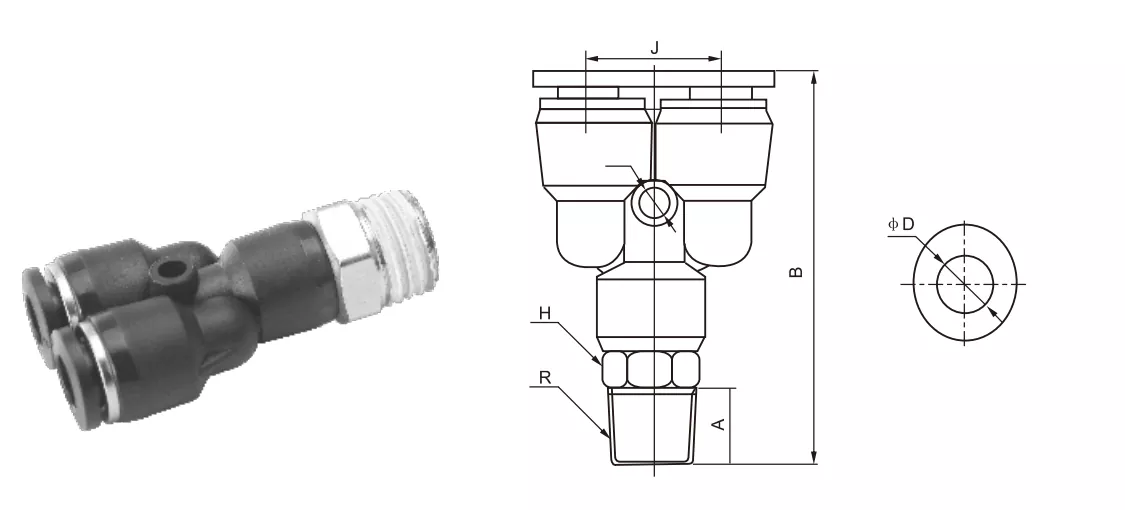

Inch Tube Fitting |
Metric Tube Fitting |
φD |
R |
A |
B |
E |
J |
φd |
|
PX5/32-M5 |
PX4-M5 |
4 |
M5 |
4.5 |
42.5 |
10 |
10.8 |
2.5 |
|
PX5/32-01 |
PX4-01 |
4 |
R1/8 |
7 |
43 |
10 |
10.8 |
2.5 |
|
PX5/32-02 |
PX4-02 |
4 |
R1/4 |
9 |
44 |
14 |
10.8 |
3 |
|
PX1/4-M5 |
PX6-M5 |
6 |
M5 |
4.5 |
41.5 |
12 |
13.4 |
3.5 |
|
PX1/4-01 |
PX6-01 |
6 |
R1/8 |
6.5 |
46 |
12 |
13.4 |
3.5 |
|
PX1/4-02 |
PX6-02 |
6 |
R1/4 |
9 |
48.5 |
14 |
13.4 |
3.5 |
|
PX1/4-03 |
PX6-03 |
6 |
R3/8 |
10 |
49 |
17 |
13.4 |
3.5 |
|
PX1/4-04 |
PX6-04 |
6 |
R1/2 |
10 |
51 |
21 |
13.4 |
3.5 |
|
PX5/16-01 |
PX8-01 |
8 |
R1/8 |
8 |
51 |
14 |
15.8 |
4 |
|
PX5/16-02 |
PX8-02 |
8 |
R1/4 |
10 |
52.5 |
14 |
15.8 |
4 |
|
PX5/16-03 |
PX8-03 |
8 |
R3/8 |
10 |
53.5 |
17 |
15.8 |
4 |
|
PX5/16-04 |
PX8-04 |
8 |
R1/2 |
11 |
55 |
21 |
15.8 |
4 |
|
PX3/8-01 |
PX10-01 |
10 |
R1/8 |
8 |
56.5 |
17 |
19 |
4 |
|
PX3/8-02 |
PX10-02 |
10 |
R1/4 |
10 |
58 |
17 |
19 |
4 |
|
PX3/8-03 |
PX10-03 |
10 |
R3/8 |
10 |
58 |
17 |
19 |
4 |
|
PX3/8-04 |
PX10-04 |
10 |
R1/2 |
11 |
59 |
21 |
19 |
4 |
|
PX1/2-01 |
PX12-01 |
12 |
R1/8 |
8 |
62 |
19 |
21.5 |
4 |
|
PX1/2-02 |
PX12-02 |
12 |
R1/4 |
10 |
70 |
19 |
21.5 |
4.5 |
|
PX1/2-03 |
PX12-03 |
12 |
R3/8 |
10 |
70 |
19 |
21.5 |
4.5 |
|
PX1/2-04 |
PX12-04 |
12 |
R1/2 |
11 |
65 |
21 |
21.5 |
4 |
|
|
PX16-03 |
16 |
R3/8 |
11 |
|
|
|
|
|
|
PX16-04 |
16 |
R1/2 |
12 |
|
|
|
|
|

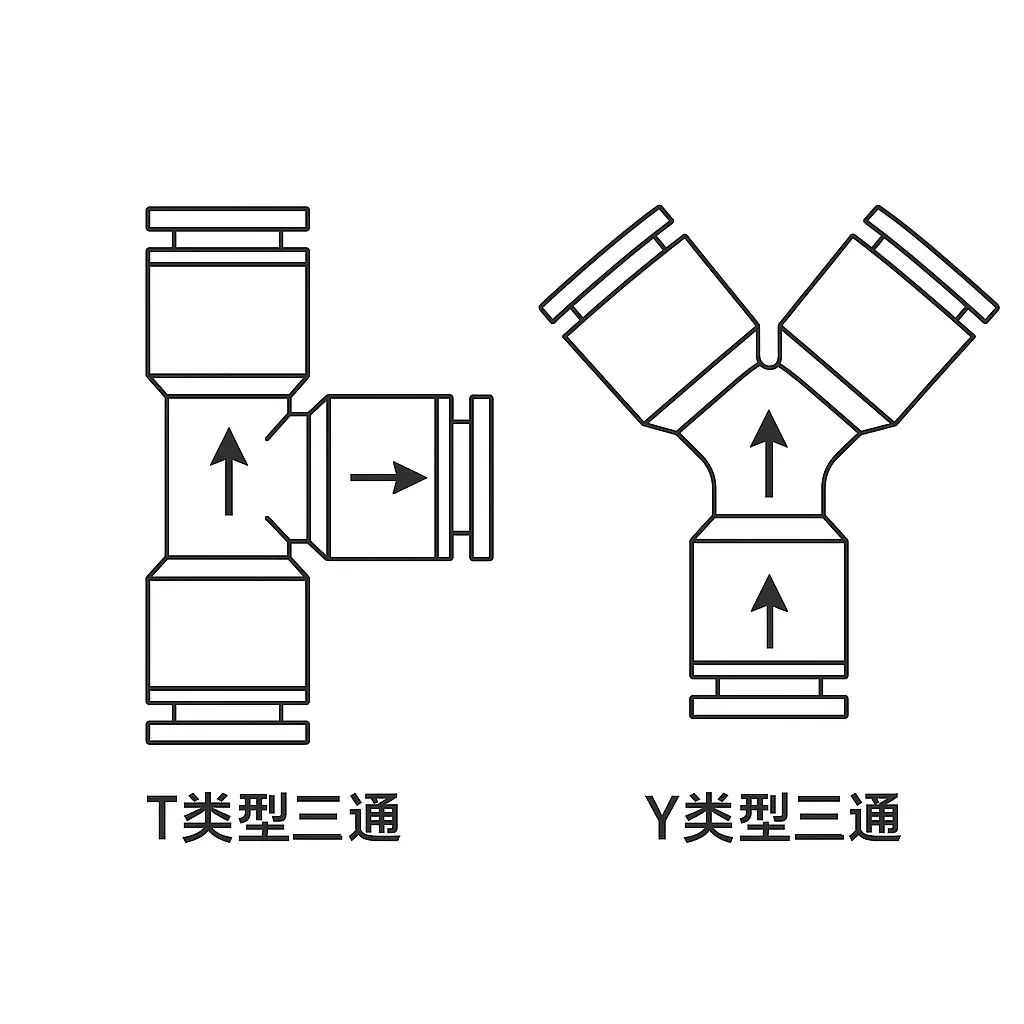

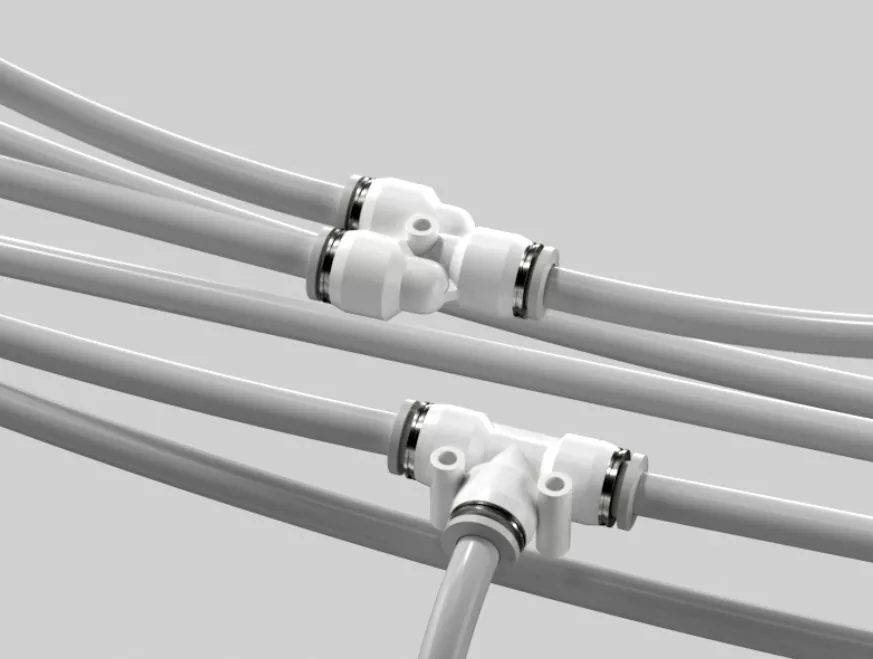

The similarities and differences between T and Y-shaped Push-in Tube Fitting : |
|
|
Tee Fitting(PB,PD) |
The3 way pneumatic fitting like "T" structure and intersect at a 90 ° angle |
|
Y Fitting(PX ) |
The3 way fitting like "Y" structure andsmooth flow direction, more suitable forair flow |
|
Compared to T-shapedpneumatic fitting, Y-shapedair connector fittingflow is smoother and has less resistance |
|
What are the characteristics of Y type air fitting compared to T type pneumatic fitting ?
Compared to T-shaped pneumatic fitting, Y-shaped air connector fitting flow is smoother and has less resistance
What is the PX Y type Push-in Tube Fitting operating pressure?
PX pneumatic fitting operating pressure is 0-1.0Mpa.
