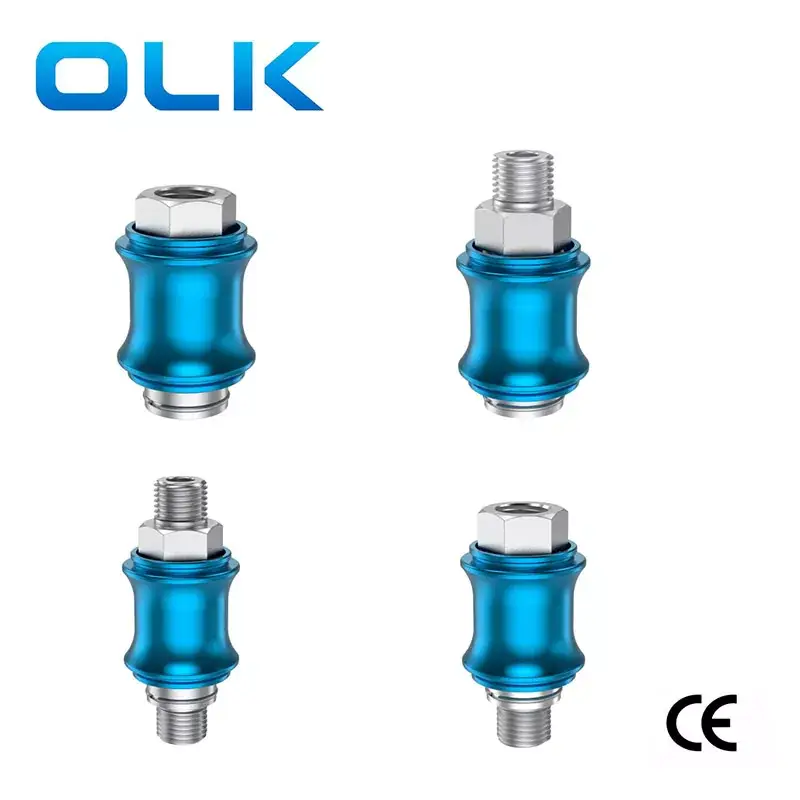

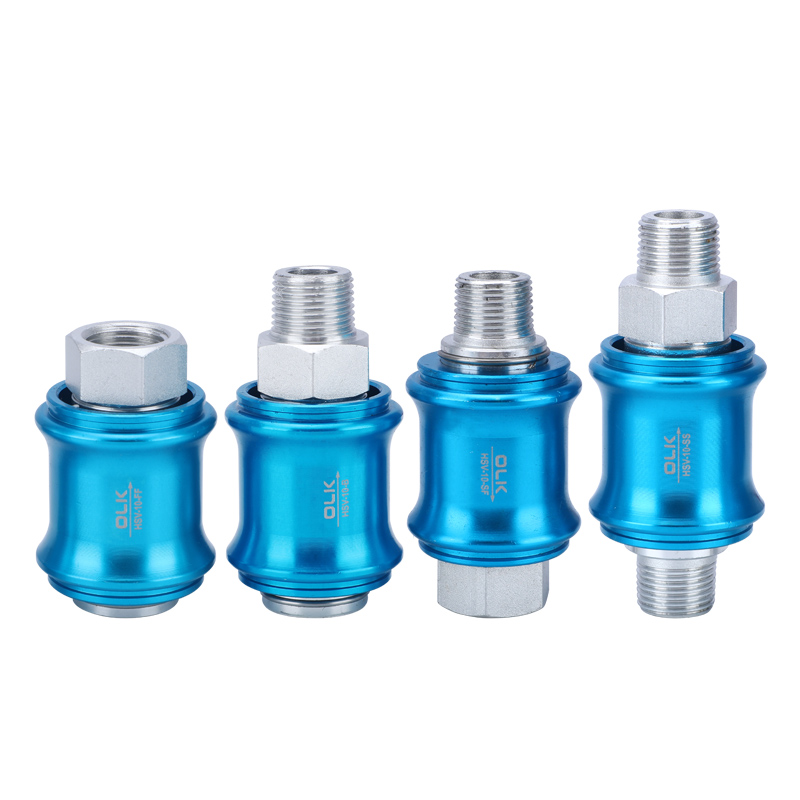

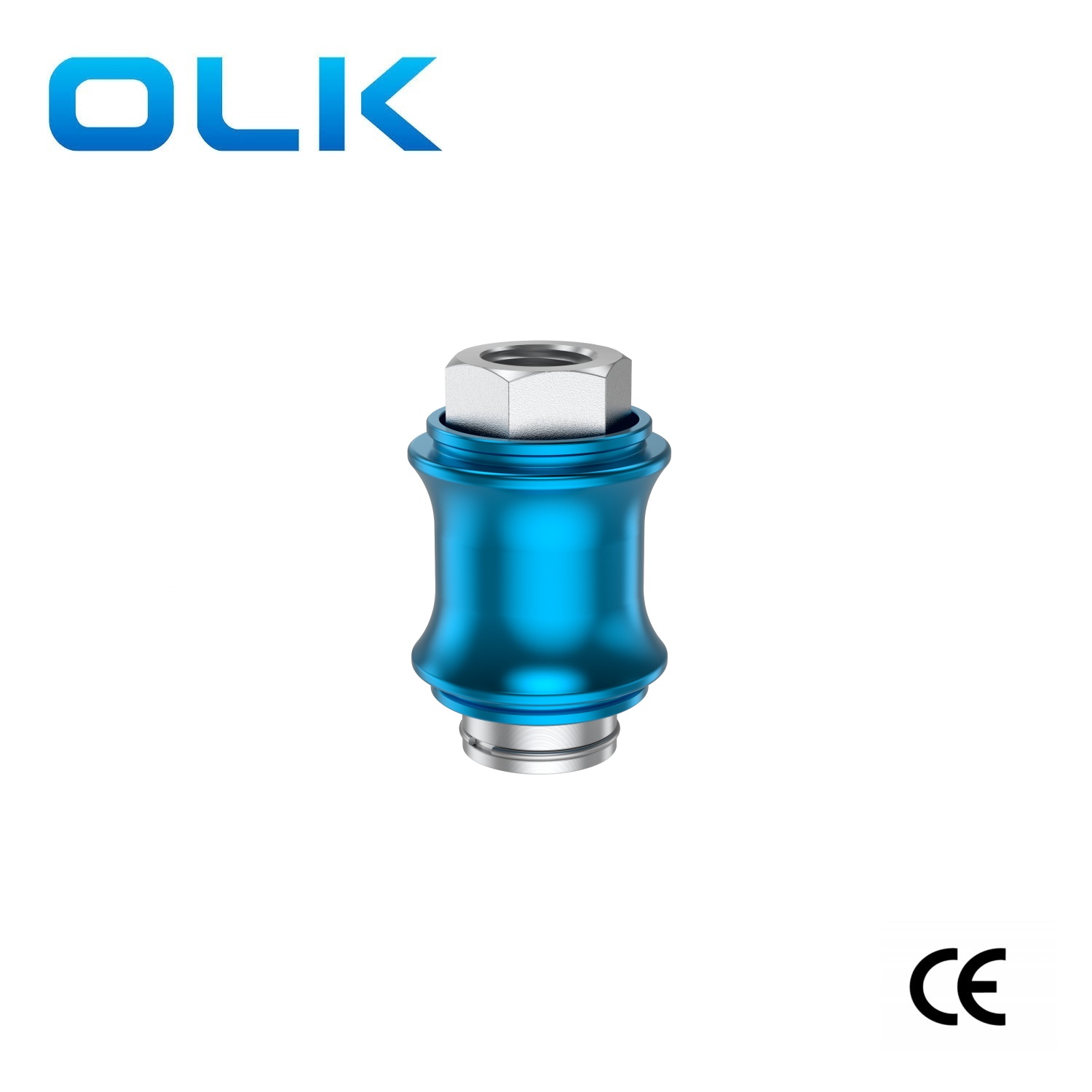

OLK as the professional manufacturer, we would like to provide you high quality HSV Series Hand Slide Valve 3 Way. The Ouleikai (OLK) HSV series 2/3 hand slide valves operate manually for switching. They feature a simple structure without complex electrical control components, offering flexible manual operation and good sealing. With various internal and external thread connections available, they are suitable for use in different piping systems. The compact size of the HSV hand slide valve allows for easy installation, making it suitable for scenarios with limited space.
HSV series 2/3 hand slide valves have a wide range of applications, covering various industrial and civil fields such as water supply, chemical industry, petrochemicals, power generation, aviation, etc. They are commonly used in industrial production for controlling liquid or gas pipelines, such as regulating flow, cutting off fluid, or changing flow direction.
|
Ordering Code |
||||
|
HSV |
-- | 08 | SS |
|
| Model: |
|
Port size: |
Mounting type: |
Thread type: |
| HSV:Hand slide valve |
|
06:1/8 |
Blank:Standard |
Blank:PT |
|
|
|
08:1/4 |

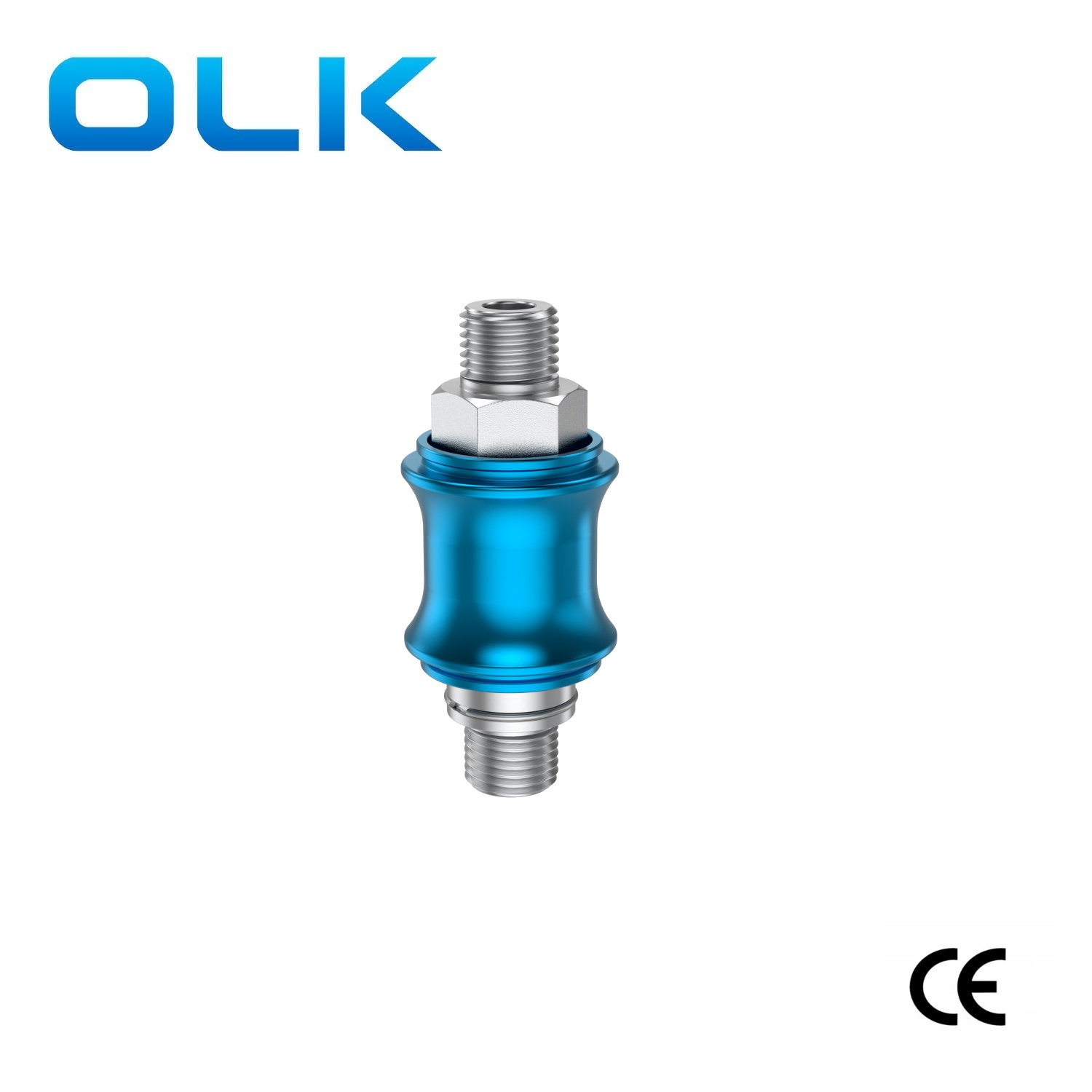

SS:Double male thread |
G:G |
|
|
|
10:3/8 |
FF:Double female thread |
T:NPT |
|
|
|
15:1/2 |

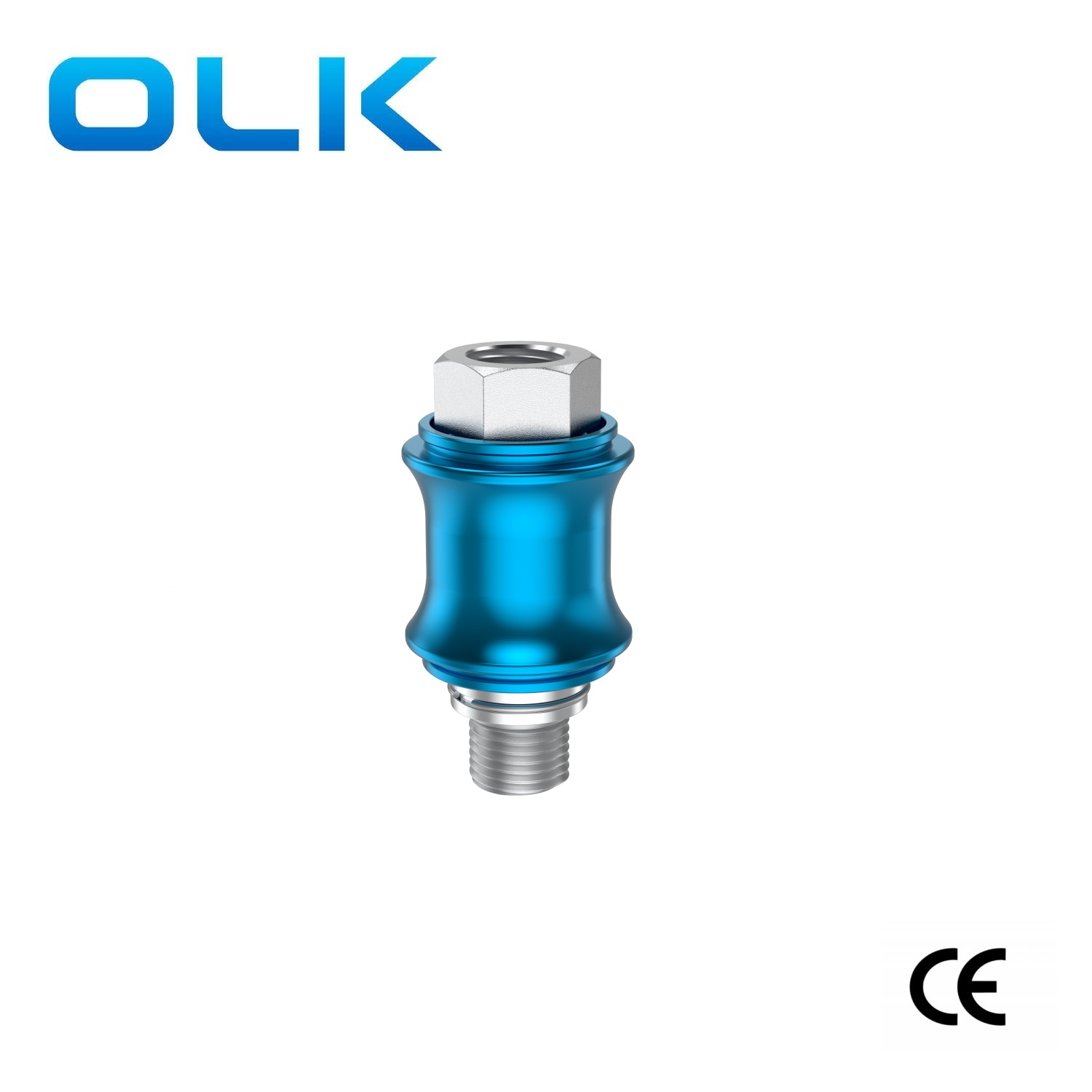

SF:Male and female thread |
|
|
|
|
20:3/4 |
|
|
|
|
|
25:1 |
|
|
Product Features:
1. Multiple internal and external thread connection options, suitable for various piping systems:
2. Smooth shifting with excellent tactile feedback.
3. Large effective flow area.
4. Hard anodized surface on the spool, and anodized treatment on the valve body surface, maintaining color vibrancy for an extended period.
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Manual direct action |
|
number of positions |
Two position three way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0∼1.0(~145) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-20∼70 |
|
Body material |
aluminum alloy |
|
model |
Port diameter |
Cross-sectional area mm² (CV value) |
|
HSV06 |
G1/8 |
12.0(0.67) |
|
HSV08 |
G1/4 |
40.0(2.20) |
|
HSV10 |
G3/8 |
60.0(3.50) |
|
HSV15 |
G1/2 |
140.0(7.80) |
|
HSV20 |
G3/4 |
250.0(13.80) |
|
HSV25 |
G1 |
392.0 (21.78) |
