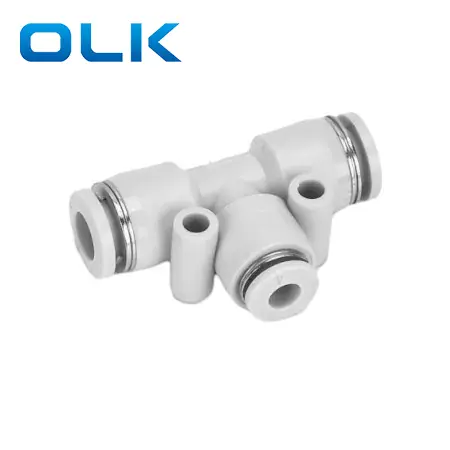

PE Union Tee Tolak dalam Pemasangan Tiub

PE

8

Model

Saiz tiub (metrik)

Siri PE Pemasangan

4: 4mm

6: 6mm

8: 8mm

10: 10mm

12: 12mm

14: 14mm

16: 16mm

Cecair

Udara/air (bersyarat)/vakum

Tekanan operasi

0-1.0mpa

Tekanan vakum

-100kpa (10 Torr)

Suhu operasi

-10-60 ℃

Bahan

Nylon (PA), Polyurethane (PU)

Pemasangan tiub inci

Pemasangan Metrictube

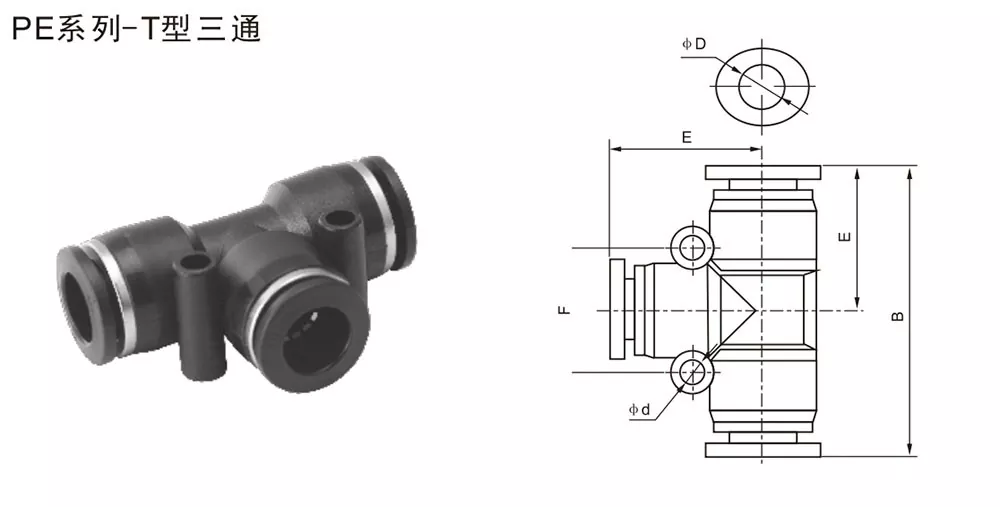

φd

B

E

F

φd

PE5/32

PE-4

4

36.6

18.3

/

/

PE1 / 4

PE-6

6

41

20.5

16

3.5

PE5/16

PE-8

8

46

23

20

4.5

PE3/8

PE-10

10

56.6

28.3

24

4.5

PE1 / 2

PE-12

12

58.6

29.3

27.7

5

PE-14

14

60.8

30.4

25.8

4

PE-16

16

69

34.5

33

4

Rujukan penukaran saiz benang kekaisaran biasa

Saiz Imperial

Lebih kurang. Metrik (mm)

Formula penukaran

1/8

3.2mm

1 ÷ 8 × 25.4 = 3.175

5/32

3.97mm

5 ÷ 32 × 25.4 = 3.97

1/4

6.35mm

1 ÷ 4 × 25.4 = 6.35

5/16

7.94mm

5 ÷ 16 × 25.4 = 7.94

3/8

9.53mm

3 ÷ 8 × 25.4 = 9.53

1/2

12.7mm

1 ÷ 2 × 25.4 = 12.7
